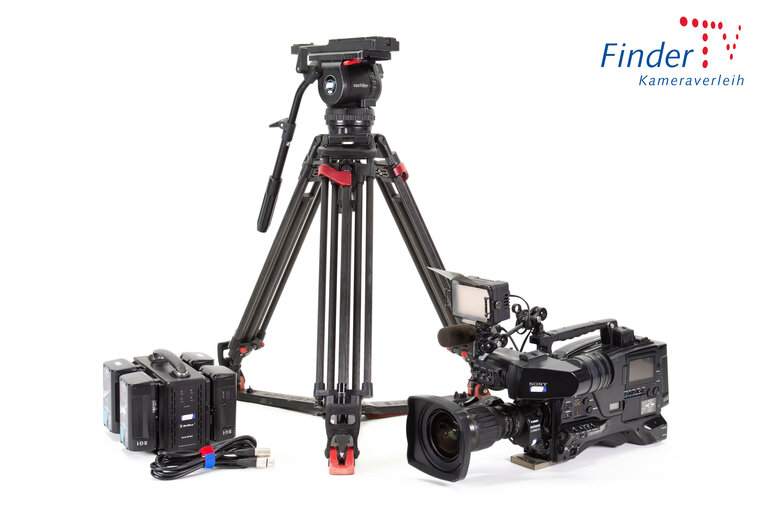

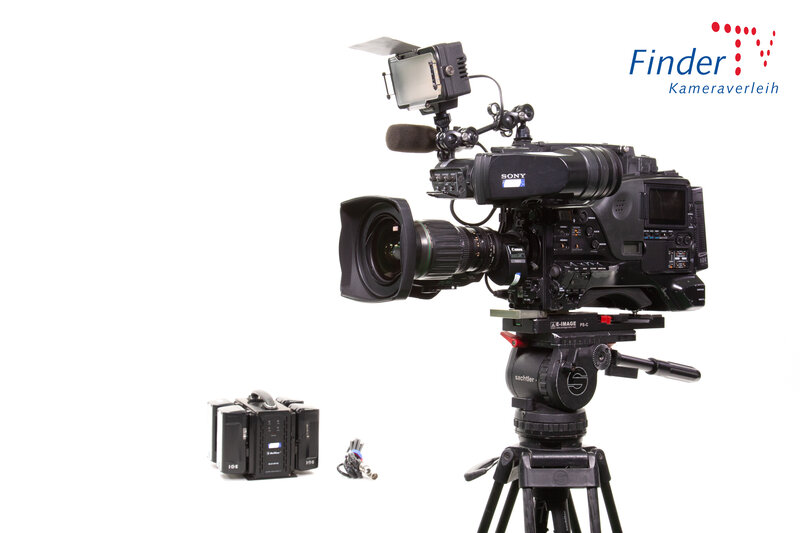

Sony PDW-700 XDCAM Set I

Aufnahmeformate
MPEG HD422 (MPEG-2 422P@HL) (CBR: 50 Mb/s)
MPEG HD (MPEG-2 MP@HL):
HQ mode (VBR, maximum bit rate: 35 Mb/s)
SP mode (CBR, 25 Mb/s)
LP mode (VBR, maximum bit rate: 18 Mb/s) - playback only
MPEG IMX (MPEG-2 422P@ML) (50/40/30 Mb/s)
DVCAM (CBR, 25 Mb/s)

Bildrate
MPEG HD422:
1920 x 1080/50i, 25P
1280 x 720/50P
MPEG HD:
1920 x 1080/50i, 25P
1280 x 720/50P
MPEG IMX: 50i
DVCAM: 50i

Aufnahmezeit auf einer Professional Disc 23 GB (PFD23A)
MPEG HD:
50Mb/s : ca 43 min.
35 Mb/s, 4-ch ch audio: ca 65 min.
25 Mb/s, 4-ch audio: ca 85 min. .
18 Mb/s, 4-ch audio (playback only):  ca. 112 min.

MPEG IMX (Option: CBKZ-MD01):
50 Mb/s: ca 45 min.
40 Mb/s:  ca. 55 min.
30 Mb/s: ca  68 min.

DVCAM (Option: CBKZ-MD01):
25 Mb/s: ca. 85 min.

Audio In
CH-1/CH-2: XLR 3-pin (female) x 2, line/mic/mic +48 V selectable

Audio Out
Audio Out CH-1/CH-2: XLR 5-pin (male, stereo) x 1

SDI In
BNC x 1
(HD/SD switchable)
HD-SDI: SMPTE 292M (w/embedded audio)
SD-SDI: SMPTE 259M (w/embedded audio)

SDI Out
BNC x 2
1 (HD/SD switchable)
HD-SDI: SMPTE 292M (w/embedded audio)
SD-SDI: SMPTE 259M (w/embedded audio)
2 (HD/SD switchable, character On/Off)
HD-SDI: SMPTE 292M (w/embedded audio)
SD-SDI: SMPTE 259M (w/embedded audio

Test Out
BNC x 1
(switchable)
HD Y/SD composite
SD composite (character On/Off)

Shutter Speed
59.94i: 1/100, 1/125, 1/250, 1/500 ,1/1000, 1/2000
50i: 1/60, 1/125, 1/250, 1/500, 1/1000, 1/2000
25p: 1/33, 1/50, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000
